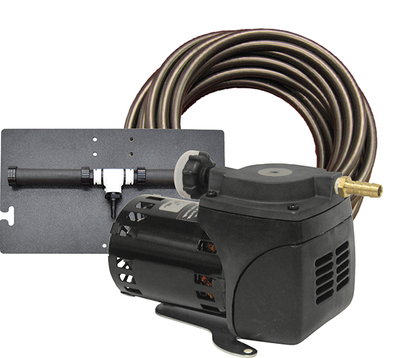

Complete aeration system for ponds up to 1/4 acre depending on shape and depth of pond. 1/20 hp DC22 diaphragm compressor, 0.7 cfm, 1.5 amps, aerates up to 12′ deep. The PA10W kit includes compressor, self weighted air diffuser and 50′ of 3/8″ Quick Sink tubing and fittings for connections.

PA10W Pond Aeration System – 1/20 HP Kit with Quick Sink Tubing

Features:

• Continuous duty 1/20 hp Diaphragm Air Compressor
• Operates to depth of 12′
• DM2 Quick Sink self weighted air diffuser
• 50′ of 3/8″ Quick Sink self weighted tubing
• Fittings and stainless steel clamps included
• Weather protection for the compressor is required

Aeration Kit for 1/4 Acre or Smaller Ponds
1 Year Warranty on Compressor
5 Year Warranty on Tubing and Diffusers

INCLUDES:

SC25 Weatherproof Cabinet – 15" X 25" X 15"H – up to PA66

This roto-molded polyethylene cabinet is an ideal alternative to the steel cabinet below. Designed to hold air compressors up to the RV33 (1/4 HP rotary vane) in size. The small foot print makes it easy to hide!

• Ideal for housing all linear compressors, DC22 (PA10), DC12 (PA12), SRC25 (PA34), SRC50 (PA66) and RV33 (PA50)
• Roto-molded in a tan color which blends into existing landscape well
• Built in louver allows fresh air into cabinet, an optional cooling fan is recommended for large compressors or in hot locations, fan comes installed in second vent hole with louver

• Tubing  -  50 ft 3/8" Quick Sink
• Horsepower  -  1/20 HP
• Voltage  -  115v
• Amps  -  1.5 amps
• Maximum Air Flow  -  0.7 cfm
• Maximum Depth  -  12'
• Weight  -  22
• In Aeration Acres  -  Up to 1/4 acre
