Atlantic Water Gardens TT-Series Pumps

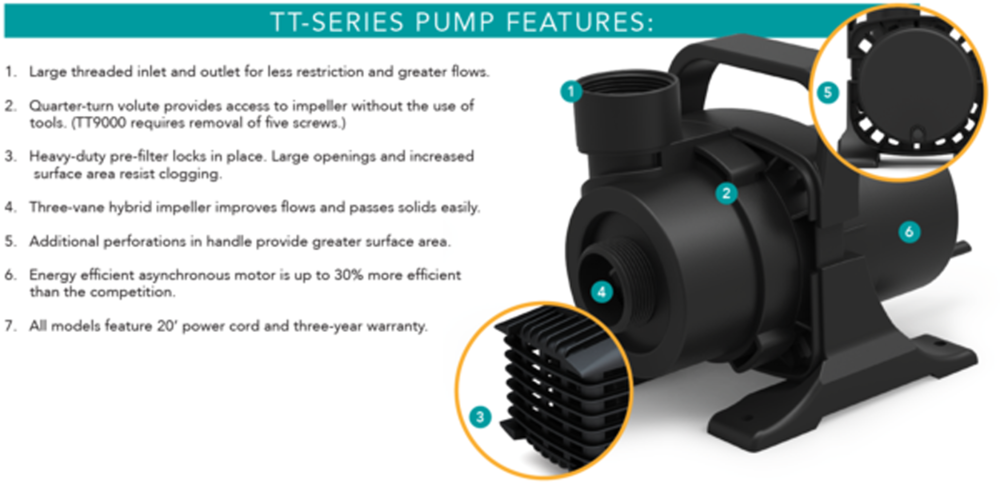

• Asynchronous Pumps combine the efficiency of Magnetic Induction with the power of Direct Drive geometry, keeping operating and ownership costs to a minimum
• Atlantic TT-Series pump more water for less watts regardless of water chemistry, making them the ideal choice for water gardens
• Compact design fits the tightest pump chambers, perfect for vertical and multiple pump applications
• Excellent resistance to fouling in hard water environments and simple maintenance keeps pumps running in adverse conditions
• Ribs and large openings in pre-filter and handle provide tremendous surface area for greater clog resistance, decreasing upkeep and increasing pump life

::TECH TIP::

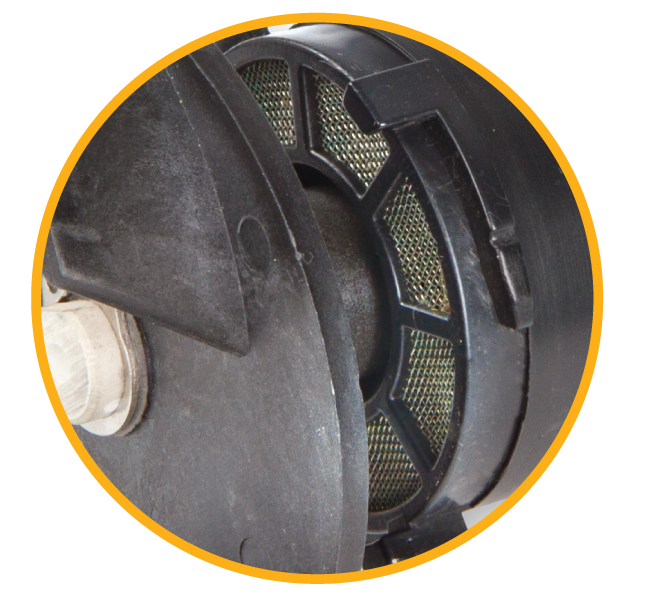

The rotors of asynchronous TidalWave Pumps are water cooled, with a screen to keep grit out of the rotor chamber.
Keeping the screen clean will prevent overheating and prolong the life of the pump.

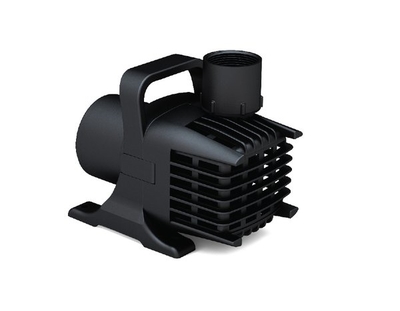

Model: TT1500

• Volts: 115
• Amps: .88
• Watts: 101
• Inlet: 1½" MIPT
• Outlet: 1½" MIPT / FIPT
• Max Pump Flow: 1640
• Warranty: 3 year
• Dimensions: 8"L x 5¼"W x 6¼"H

Model: TT2000

• Volts: 115
• Amps: 1.0
• Watts: 115
• Inlet: 1½" MIPT
• Outlet: 1½" MIPT / FIPT
• Max Pump Flow: 2640
• Warranty: 3 year
• Dimensions: 8"L x 5¼"W x 6¼"H

Model: TT3000

• Volts: 115
• Amps: 1.5
• Watts: 173
• Inlet: 1½" MIPT
• Outlet: 1½" MIPT / FIPT
• Max Pump Flow: 3000
• Warranty: 3 year
• Dimensions: 8"L x 5¼"W x 6¼"H

Model: TT4000

• Volts: 115
• Amps: 2.0
• Watts: 230
• Inlet: 1½" MIPT
• Outlet: 1½" FIPT
• Max Pump Flow: 4490
• Warranty: 3 year
• Dimensions: 9¼"L x 6"W x 7"H

Model: TT5000

• Volts: 115
• Amps: 2.7
• Watts: 310
• Inlet: 2" MIPT
• Outlet: 2" FIPT
• Max Pump Flow: 5150
• Warranty: 3 year
• Dimensions: 9¼"L x 6"W x 7"H

Model: TT6000

• Volts: 115
• Amps: 2.9
• Watts: 339
• Inlet: 2" MIPT
• Outlet: 2" FIPT
• Max Pump Flow: 6600
• Warranty: 3 year
• Dimensions: 9¼"L x 6"W x 7"H

Model: TT7500

• Volts: 120
• Amps: 4.4
• Watts: 520
• Inlet: 2" MIPT
• Outlet: 2" FIPT / 3" MIPT
• Cord Length: 20'
• Dimensions: 7¼"W x 8"H

Model: TT9000

• Volts: 115
• Amps: 5.1
• Watts: 587
• Inlet: 2" MIPT
• Outlet: 2" FIPT / 3" MIPT
• Cord Length: 20'
• Max Pump Flow: 9200
• Warranty: 3 year
• Dimensions: 11"L x 7¼"W x 8"H
