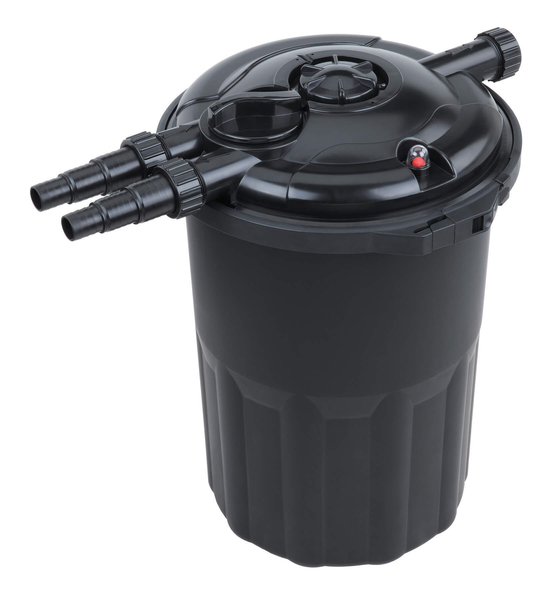

EC3900 Eco-Clear Pressurized Filter – Up to 3900 Gallons – no UV

The EC3900 Eco-Clear Pressurized Filter is good for ponds up to 3900 gallons or 1950 gallons with fish. Note that fish load, feeding rates, amount of sunlight and other factors affect actual maximum gallons that can be filtered.

EC3900U Eco-Clear Pressurized Filter – Up to 3900 Gallons – 24 Watt UV

The EC3900U Eco-Clear Pressurized Filter with 24 watt UV is good for ponds up to 3900 gallons or 1950 gallons with fish. Note that fish load, feeding rates, amount of sunlight and other factors affect actual maximum gallons that can be filtered.

• Sturdy filter housings – can be buried up to cleaning ring for easy concealment
• Dual filtration – filter pads collect solid debris while bio-media provides excellent biological filtration
• Cleaning indicator – shows when filter needs to be cleaned
• Backwash valve to extend time between full cleanouts
• Filters are easy to disassemble and clean, making maintenance a snap!
• Multi step connectors – inlet/outlet fittings accept a variety of tubing sizes
• 1 1/2″ adaptor fittings for PVC connections

How it Works

Dirty pond water enters the pressurized filter. Water is pushed through multiple densities of foam filters and cleaned of solid debris. Water is pushed through bio-media that provides excellent biological filtration. Select units have high-intensity UV lights that destroy algae cells, eliminating green water. Cleaned water is returned to your pond.

Without UV

• Max Flow Rate - 3900 gph
• Dimensions - 21.26"W x 14.92"D x 21.73"H
• Pond Size - 1950 gallons with fish/3900 gallons no fish
• Inlet - 1", 1 1/4", 1 1/2" step barb fitting
• Outlet - 1", 1 1/4", 1 1/2" step barb fitting
• Warranty - 3 years

With UV

• Max Flow Rate - 3900 gph
• Dimensions - 21.26"W x 14.92"D x 22.68"H
• Pond Size - 1950 gallons with fish/3900 gallons no fish
• Power Cord Length - 16 feet
• Inlet - 1", 1 1/4", 1 1/2" step barb fitting
• Voltage - 115 V
• Outlet - 1", 1 1/4", 1 1/2" step barb fitting
• UV Watts - 24 Watts
• Warranty - 3 years

PRODUCT INSTRUCTIONS
