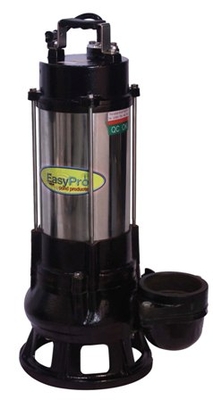

TB14500 TB Series – Hi volume submersible pump – Hi head 14500gph 230v

• 3″ outlets with 20′ power cords and thermal overload protection
• Top quality Japanese double mechanical seals – over 100,000 hour life expectancy
• 230 volt (1 hp available in 230v or 115v)

TB Series submersible pumps are perfect for high head streams and waterfalls. Their compact design and unmatched durability allows for use in large skimmers or pump vaults in continuous duty pond and water feature applications.

• Max Flow Rate  --  14500 gph
• Dimensions  -  12" Diameter 22.5" Tall
• Power Cord Length  -  20'
• Horsepower  - 3hp
• Voltage  -  230v
• Amps  -  14.5
• Maximum Head  -  72'
• Outlet  -  3"
• Warranty  -  2 years
• Weight  -  72
• In Max Flow Rate  -  71+ ft.
• In Max Head  -  71+ ft.
• In Horsepower  -  3 HP
