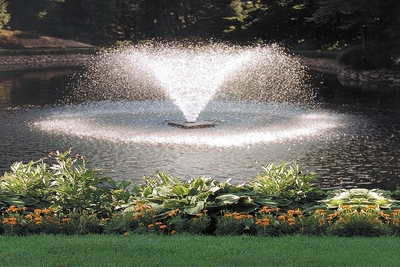

This DA-20 moves 400 gallons of water per minute in a cascading, trumpet-shaped spray pattern, approximately 6½ feet tall by 22 feet wide.

This flow rate does a fantastic job moving algae off of the surface, maintaining clean and clear water, and keeping pesky insects away, all while adding a large amount of oxygen to the pond. Adding oxygen does wonders for your fish, and is the key component in rapidly breaking down decaying matter at the bottom of your pond. As an added benefit, more oxygen means less muck over time.

The DA-20 is manufactured utilizing a stainless steel, oil-free submersible motor, making it the most environmentally friendly water aerator on the market. You won't have to add or change oil, no other maintenance is needed, and no control box is required.

The DA-20 is also simple to install, requiring just two anchoring ropes and weights or tethers.

• Spray pattern adjusts in width, can be as narrow as 9 feet.
• Electric cable provided is 70 feet long, 12-gauge submersible, with plug.
• Electric cable can be ordered in greater lengths, up to 150 feet.
• Light kits can be added later.
• Approved for use in salt water.
• Two 30-pound weights or concrete blocks required for anchoring (not included).
• Two nylon ropes required for anchoring (not included).
• Designed for 24-hour-per-day operation.
• No maintenance required.
• 32” minimum pond depth required.
• Pond size should be 1/8 acre or larger.
• Motor specs: 60 Hz, single-phase, 10 amps, 680 watts.
• 230-volt motor available.
• 5-year motor warranty.
• Available in 3-phase version.
• Available in 50 Hz.

SPECIFICATIONS

20K - 1/3 HP - 115volt

• 115-volt, 1/3-hp, oil-free motor.
• 300 gallons-per-minute flow rate.
• Default spray pattern measures 5 feet high and 18 feet wide.
• 70 foot cord

20A - 1/2 HP - 115volt

• 115-volt, ½-hp, oil-free motor.
• 400 gallons-per-minute flow rate.
• Default spray pattern measures 6 feet high, 22 feet wide.
• 70 foot cord

20C- 1 HP - 230volt

• 230-volt, 1-hp, oil-free motor.
• 500 gallons-per-minute flow rate.
• Default spray pattern measures 7 feet high, 25 feet wide
• 70 foot cord

20B - 1-1/2 HP - 230volt

• 230-volt, 1½-hp, oil-free motor.
• 600 gallons-per-minute flow rate.
• Default spray pattern measures 10 feet high, 25 feet wide.
• Spray pattern adjusts
• 100 ft cord

20F - 2 HP - 230volt

• 230-volt, 2-hp, oil-free motor with control box.
• 700 gallons-per-minute flow rate.
• Default spray pattern measures 11 feet high, 26 feet wide.
• 100 ft cord

20H - 3 HP - 230volt

• 230-volt, 3-hp, oil-free motor with control box.
• 800 gallons-per-minute flow rate.
• Default spray pattern measures 11 feet high, 32 feet wide
• 100 ft cord
